The FCC has .seq files that show ground conductivity which it makes available for download. Unfortunately, there doesn't appear to be any documentation that comes with the files, or even headers.

I can make an educated guess that there are two longitudes/latitudes for each record, and the last two numbers represent perhaps a range of ground conductivity. What is the meaning of each field? Is there anywhere I can learn more?

Mike Waters
  • 7,843
  • 4
  • 16
  • 50
user3486184
  • 1,840
  • 13
  • 26
  • 3
    Working on it... it looks like it's a vector file for the contour map data... the second through fifth fields are lat(N)/lon(W)/lat(N)/lon(W) for a line segment, sixth and seventh fields are the conductivities on either side of the segment, in mS/m. But there's more to figure out, like what the "9999" records mean (9998 appears to be the end-of-file marker), whether the jumps in the first column value are significant, and a few other things. – hobbs - KC2G Jun 27 '19 at 13:49

2 Answers2

5

Here are the fields for AM_conductivity_m3.seq_.txt and AM_conductivity_m3hw.seq_.txt files:

4001   21.5750  158.2760   21.5840  158.1900    2.00 5000.00

Fields, left to right:

  1. The number of the line segment.
  2. The north latitude of the start of the segment.
  3. The west longitude of the start of the segment.
  4. The north latitude of the end of the segment.
  5. The west longitude of the end of the segment.
  6. The immediate ground conductivity east of this segment (north conductivity for exact east-west lines) in mS/m.
  7. The immediate ground conductivity west of this segment (south conductivity for exact east-west lines) in mS/m.

I think I also understand the 9999 lines:

9999  466.0000   19.0000  160.0000   24.0000  152.00   98.00

Fields, left to right:

  1. The number 9999 indicates the start of a region.
  2. The number of records (excluding the 9999) for that region.
  3. The north latitude of the lower left corner of a box bounding the region.
  4. The west longitude of the lower left corner of a box bounding the region.
  5. The north latitude of the upper right corner of a box bounding the region.
  6. The west longitude of the upper right corner of a box bounding the region.
  7. The index number of the region (1.00, 2.00, 3.00...etc.). The file AM_conductivity_m3.seq_.txt contains regions 1-97, and the Hawaii file AM_conductivity_m3hw.seq_.txt has region 98.

Just for completeness, 9998:

9998    1.0000    1.0000    1.0000    1.0000    1.00    1.00

9998 is indeed an end-of-file, with dummy values of 1 in all fields.

Here are the fields for AM_conductivity_r2.seq_.txt file:

  11   2  5000.0    1.0  BROCK ISLAND
  77.873115.027  77.905115.060  77.930115.181  77.935115.192  77.942115.126
  77.940115.071    .000   .000    .000   .000    .000   .000    .000   .000
  1. Region number.
  2. Number of following lines containing points for that region.
  3. Conductivity on one side of the line defined by the points (mS/m).
  4. Conductivity on the other side of the line defined by the points (mS/m).
  5. Name of the region.
  6. List of points in XX.XXX north latitude, YY.YYY west longitude. (So 77.101120.133 means 77.101 N, 120.133 W.) Points with value .000 should be ignored. Negative values are S or E.
user3486184
  • 1,840
  • 13
  • 26
  • 1
    You solved the puzzle! Excellent! – rclocher3 Mar 02 '20 at 14:22
  • 1
    Very good! Thank you for putting in the effort. I guess the 9998 records form a very rudimentary index, allowing you to skip over regions that can't possibly contain a point of interest. Or maybe they just used it for plotting regional maps. Either way! – hobbs - KC2G Mar 02 '20 at 21:26
1

The figures on that map are approximate.

They represent estimated ground conductivity in millimhos per meter. And it varies with (among other things) how wet or dry the soil is.

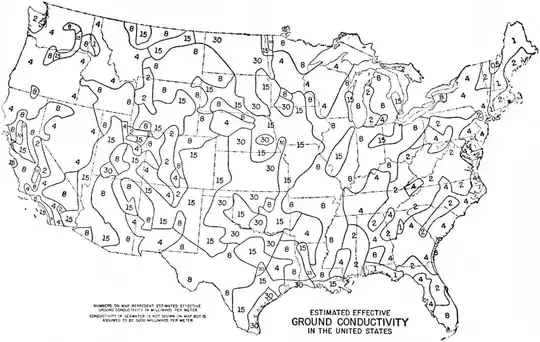

FCC CONUS ground conductivity map

I live near a line where on one side it is 15, and on the other side it is 8. Driving across that line, the conductivity does not suddenly jump to the other number. Rather, it changes gradually. Having said that, there are some places in the US where there is a drastic change between the soil types, which often are visible.

Much more details can be found here on the Topband Reflector. In one of those threads, K2AV has a method for laying a dipole on the ground to measure it.

Mike Waters
  • 7,843
  • 4
  • 16
  • 50
  • 4
    The map data is presumably encoded in the .seq files linked to from the web page given in the question. The question is about how to interpret the .seq files, which are text files containing seven columns of numbers with no header row. – rclocher3 Jul 28 '19 at 04:35
