How to force armbian create an AP with 2.4 GHz instead of 5 GHz?

Question

Orange Pi 3. Armbian-config creates a hotspot for Wi-Fi 5 GHz on channel 40 and sometimes on 2.4 GHz. I know it scanning for better, but I need to always create 2.4 GHz Wi-FI AP. If I'm just changing channel from 40 to 6 AP doesn't work at all.

score 0 · Accepted Answer · edited Feb 25 '21 at 09:18

0

Edit the file /etc/hostapd.conf and locate the #IEEE 802.11 section. Then, comment all of the uncommented lines. For example:

### IEEE 802.11n
## ieee80211n=1
## ht_capab=[DSSS_CK-40][HT20+]
## country_code=US
## ieee80211d=1
## IEEE 802.11n

## IEEE 802.11a
## hw_mode=a
## IEEE 802.11a

### IEEE 802.11ac
# ieee80211ac=1
# vht_capab=
# vht_oper_chwidth=1
# vht_oper_centr_freq_seg0_idx=42
### IEEE 802.11ac

edited Feb 25 '21 at 09:18

Joseph

2,158
3
14
24

answered Feb 20 '21 at 22:44

Tomáš Fromm

16

Thank you for giving me the right direction. Whan I comment out everything that you wrote, then there is no Wi-Fi at all. However, 2.4GHz goes up when I only commented out the lines `ieee80211n=1 ht_capab=smth hw_mode=a` and set **channel to 6** instead of **40**. – Дмитрий Чуриков Nov 01 '21 at 15:35

score 0 · Answer 2 · edited Oct 08 '22 at 17:13

0

I set channel to 3 (another 2.4G channel also will work). Then I commented hw_mode=a and ieee80211ac=1.

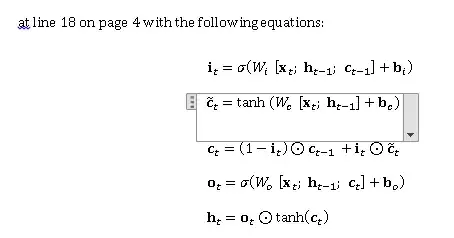

As the attached figure suggests.

edited Oct 08 '22 at 17:13

Rohit Gupta

2,721
18
27
35

answered Oct 08 '22 at 01:08

medogan

1
1
