I have downloaded a prebuilt Ubuntu virtual machine and I am trying to run it using Virtualbox 6.1. I see this when opening the settings of the virtual machine and the virtual machine will not start.

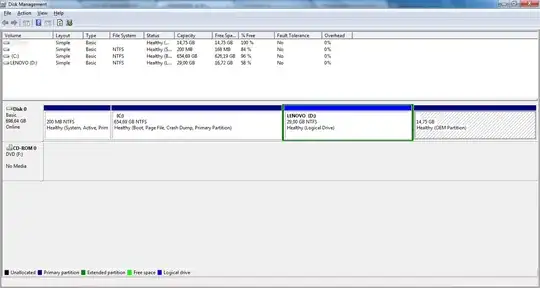

enter image description here

I have tried selecting the Acceleration tab in System settings and unticking: "Hardware Virtualisation", but the message does not disappear and I cannot click ok (because it is greyed out - I assume the button can be clicked once the issues are resolved); only cancel.

I believe my Motherboard (P6X58D-E version 0502) and CPU (Core I7 950) supports acceleration as described here: Cannot enable Intel VT-d in the BIOS. Virtualisation is enabled according to task manager:

enter image description here

Here are my CPU BIOS settings:

enter image description here

Intel VT-d Configuration/Intel VT-d is disabled in the BIOS because of the issue described in the thread I have linked to. However, the answerer says it does not need to be enabled for acceleration.

What else can I do?

Update

  1. I have the Docker v19.03.13 installed, however it is not running
  2. I have tried VirtualBox versions 6.0.24-139119 and VirtualBox-6.1.18-142142.
  3. I have AVG installed
  4. I have the following windows features. I have tried disabling hyperv, however I want to use VirtualBox with hyperv ideally (is there a way to find out what is using vt-x?):

enter image description here

w0051977
  • 225
  • 3
  • 16
  • 2
    It could well be in use by Hyper-V, WSL2, Windows Defender, or any other number of things. VMWare and VirtualBox should have options to use the Windows Virtual Machine Platform methods which should then share the option better. – Mokubai Mar 24 '21 at 09:52
  • [VirtualBox 6.1+ requires VT-x to run 32-bit guest VMs](https://www.virtualbox.org/wiki/Changelog) this change was made in 2019. What security software do you have installed that might be using VT-x? What version of VirtualBox are you using exactly (full version number)? What optional Windows features do you have installed? What other software like (I.e Docker) do you have installed. You might have enabled VT-x but something other than VirtualBox is using it. – Ramhound Mar 24 '21 at 11:41
  • @Ramhound, I have added an update. – w0051977 Mar 24 '21 at 13:06
  • Docker being installed is the source of your problem. What security features do you have enabled within AVG? What AVG product precisely are you running? – Ramhound Mar 24 '21 at 15:42
  • @Ramhound, I have tried uninstalling Docker already. – w0051977 Mar 24 '21 at 15:45
  • @w0051977 - Your question nor your comment made any mention of that. – Ramhound Mar 24 '21 at 15:46
  • Without some very specific information about the configuration of AVG this question really cannot be answered. I decided to just vote to close it. – Ramhound Mar 24 '21 at 19:36
  • @Ramhound, just reinstalled windows 10 and then installed virtualbox (in that order I e. No av etc). I still have the same problem. – w0051977 Mar 24 '21 at 20:03
  • I will have to conclude that despite the Intel documentation saying VT-x is support, it actually is not supported, given that it does not work. Since VirtualBox 6.1+ now requires VT-x in order to run any virtual machine, VirtualBox, cannot be used on your hardware. – Ramhound Mar 24 '21 at 20:47
  • I suggest you submit this problem to the VirtualBox forum and provide the log VirtualBox generates. – Ramhound Mar 24 '21 at 21:00

1 Answers1

0

Virtualbox may have difficulties co-existing with Hyper-V.

Try to disable the Windows features of "Hyper-V" and "Virtual Machine Platform". I notice that you have installed the Windows Subsystem for Linux (WSL), and without these features you will be limited to WSL version 1 which is slightly less performant if you're a heavy user of it.

If it doesn't help, you could perhaps try VMware instead of Virtualbox, to see if it has better hardware support for your computer (leaving the above Windows features disabled for the moment).
