I have bought a network cable tester and in the manual it said that all lights from 1-8-G should light up in sequence. However I get only 8 without G, although the cable is in working condition.

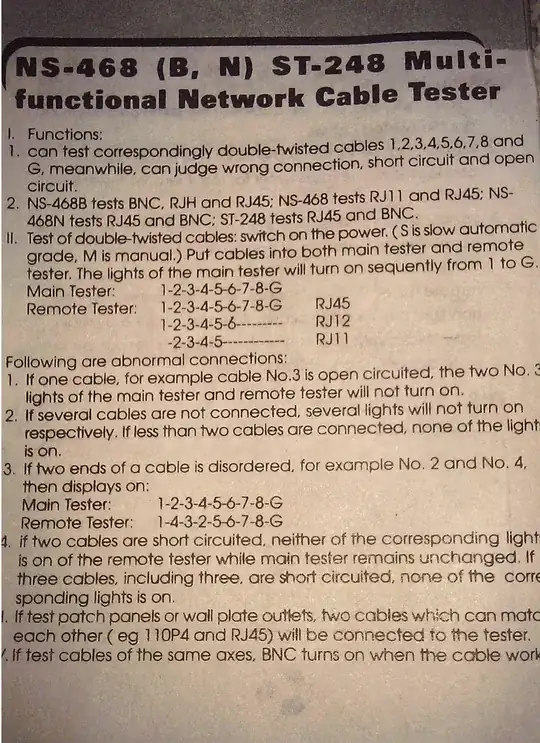

Here is a picture of the manual:

enter image description here

Here is a video

The product's model is NS-468. If you have the same product, can you tell me what is wrong and what G is intended for?

fixer1234
  • 27,064
  • 61
  • 75
  • 116
Boris_yo
  • 5,776
  • 23
  • 73
  • 117

3 Answers3

19

There is nothing wrong with your tester.
There are 8 strands in an unshielded network cable which is what you tested in your video.
A shielded cable also has a grounded metal sheath surrounding the 8 strands. The G on your tester refers to this.
I have a similar tester but in mine the shield is referred to as "Shield".

Tog
  • 4,975
  • 14
  • 37
  • 42
  • G refers to metal sheath? If so, why it does not blink? – Boris_yo Sep 30 '11 at 18:34
  • The cable in your video doesn't appear to have one, it's unshielded. – Tog Sep 30 '11 at 18:36
  • There is nothing wrong with that, it is a perfectly valid cable type. – Tog Sep 30 '11 at 18:42
  • Oh i got it now. I was slow back then. – Boris_yo Oct 02 '11 at 21:09
  • I was curious how the tester would even test this, since there's only 8 pins on the RJ45. A shielded cable requires a connector with a metal wrap like this for the shield to connect with, and the tester in turn has a contact for the metal wrap on the connector: https://i.stack.imgur.com/Pju2u.jpg – AaronLS Jan 24 '17 at 05:01
0

I also have a cable tester (test connect and speed) : some cables succeed in testing the G, some not (no light at all). Both sort of cables works well. All are 5e quality (supposed to support 1000 mbps). The difference is the lateral of the plug : metal = G present. Plastic = G (ground) not present. The cables with ground are protected from outside induction influence, and are really more "safe". Chat GPT consulted = cables with ground are much more better, and should always be used.

FrankP
  • 1
  • Please don't send answers based on ChatGPT. It can be very wrong at times. Include some additional source(s) confirming your theory. – Destroy666 May 09 '23 at 13:09
0

In my CHL-468 tester, the G position is not populated by an LED. I actually soldered in an LED and got it to work.

Adam
  • 11
