I'm trying to record analogue stereo sound with my MacBookAir. The external mic is plugged to the headphones jack, but it is not being shown in the System Preferences. I did a little bit of research, and there is some rumor, that the headphone jack only supports digital-in for mics.

Is there a built-in way to use the analogue stereo sound without purchasing an external converter or a new mic? With my old MacBook 2,1 it was usual for me to do this, but with my new MacBook Air 4,1 it seems to be a tough task.

Simon Sheehan
  • 9,114
  • 12
  • 52
  • 71
Milla Well
  • 291
  • 1
  • 3
  • 11
  • Yea- I love the way Apple tech just goes in with the new and out with the old. It forces its community to stay up to date..which is very nice; but very expensive. – Piotr Kula May 03 '12 at 16:22

2 Answers2

5

My MacBook Air mid 2012 with OS X 10.8.3 does have the External Audio-IN capability.

enter image description here

It is just bit hidden and not well explained by Big Apple.

As you can read it suggest to use the iPhone headset (with microphone.

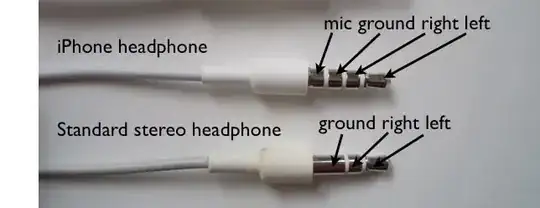

Digging in to that one finds out that it is the audio plug (hardware) that is special.

enter image description here

One could be stubborn in wanting to use your microphone and not the iPhone headset version, so this is the solution for that.

A audio splitter from 4 to 3 rings :)

enter image description here

I found stores in Europe (for about €10), but sure you can find it where you are.

Ruskes
  • 340
  • 2
  • 11
  • If you're like me and don't know your way around the mac, first screenshot is in apple icon > about this mac > overview tab > system report. – user420667 Feb 12 '15 at 01:38
0

Macbook air is castrated as much as it can be.... I don't know what's you goal for using stereo input at all, but if I were you, I'd buy some usb audio interface, which has normal inputs with btw normal impedance (!). But it's just because I used to make some demos with plugged guitar for example =) after a while everybody goes to audio interfaces, to get better quality and latency anyway =)

holms
  • 3,257
  • 4
  • 25
  • 33
  • and you can certainly recommend some thread which clarifies the question of which audio interface is reasonable? – Milla Well Nov 27 '11 at 18:39
  • well macbook air doesn't have analog input =) so sorry, only way to go is to have external audio interface.. – holms Nov 27 '11 at 19:15
