Looking to stack these 8 folded dipoles on my 100ft tower.

I can not find any information whatsoever on these. I have 4 consecutive serial numbered boxes.

Bluewave Marathon
BME139FN1H0
138 - 174 MHz
Gain 5.5dBd

Looking for information on an appropriate phasing harness and spacing.

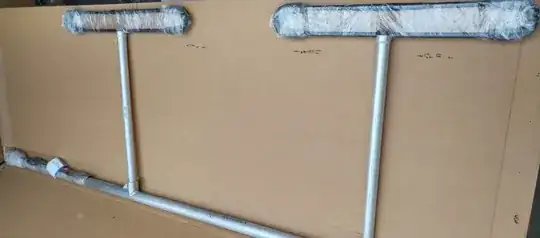

Photo of antenna in packaging

Kevin Reid AG6YO
  • 24,195
  • 7
  • 48
  • 101
VE6RSO
  • 3
  • 3
  • 1
    What is the actual goal of this? And is it 8 individual folded dipoles, or 8 pairs like the photo? – tomnexus Jan 29 '20 at 04:50
  • 4 boxes, 4 pairs, for a total of 8 individual folded dipoles. Can configure 4 TX and 4 RX or stack all 8 and use a Sinclair duplexer. – VE6RSO Jan 30 '20 at 15:02
  • The end goal is a DMR repeater in the middle between Calgary and Edmonton. – VE6RSO Jan 30 '20 at 15:05

1 Answers1

2

The info is in the model number

BM - Bluewave Marathon
E - Exposed offset
139- Frequency
F - Gain 5.5dBd
N1 - Connector Type
H - Horizontal Polarized

More info can be found here - Please note you may have to download the whole book for all info.
