8

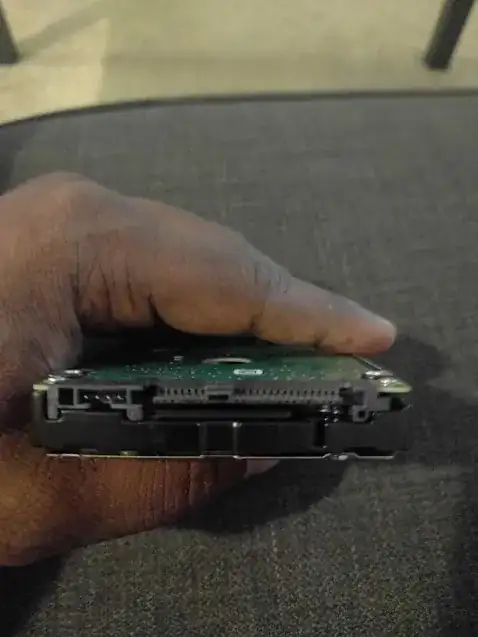

I am not a server guy. I have few external hard disks lying around. Googling around I found those are SAS drives. I want to convert it into an external hard drive for personal use (I'm planning to connect it to the router that has USB 3.0 ). How to connect these drives to the router through USB or ethernet? Any help would be welcome. The hard disk is in the image.

enter image description here

Hennes
  • 64,768
  • 7
  • 111
  • 168
user1429322
  • 181
  • 1
  • 1
  • 3
  • 1
    https://serverfault.com/questions/376780/how-can-i-connect-a-sas-drive-to-usb related and worth a read. Basically you can't. – Journeyman Geek Sep 30 '17 at 01:07
  • 1
    Give it to a computer recycling place and ask for a used SATA drive or USB External Drive in return. It can't be that big of a drive if it is just laying around and SAS. I'm guessing 300 GB or less. A SATA of comparable size will be simpler and cost next to nothing. As @JourneymanGeek mentioned, it is near impossible to do what you want without a full on workstation used to provide an external interface or some rube Goldberg mechanism. – Damon Sep 30 '17 at 03:53

4 Answers4

1

I came across two SAS to USB adapters that seem to have the necessary SAS controller as well as physical connectors; however the cost is going to be prohibitive for many.

Ebay $600 https://www.ebay.com/itm/Reader-Cable-SAS-to-USB-3-0-Adapter-Universal-Converter/192743009670?hash=item2ce060ed86:g:VeIAAOSwcOZcAV3g:rk:1:pf:0

Other ?$ https://letmelinkusb.com/sas-to-usb-converter/ https://www.youtube.com/watch?v=e6eh9kgaWy0

joegtech
  • 11
  • 1
0

Just got my converter for $5.50 from aliexpress SFF-8482 SAS 22 Pin to 7 Pin - not work for anybody when read comments

  • is not working only detect drive but when init try change MBR GTP failed (Win)
  • drive spin - make whining noise
  • ended up with my laptop power supply stop working and run on battery. After restart connect different power supply and then back to main original its working again

SASSATAFAILED

Found this one maybe its work:

https://www.youtube.com/watch?v=e6eh9kgaWy0

https://letmelinkusb.com/sas-to-usb-converter/

___ UPDATE _____

Connected to different HDD Enclosure but this time partition are not detected

enter image description here

user956584
  • 356
  • 4
  • 13
  • 2
    The reason for this is that it is a passive converter, it doesn't convert the signals. SAS drives run at different signal voltages to SATA. SAS controllers will usually speak SATA as well, but SAS drives cannot talk to a SATA controller. Since most USB adapters only talk SATA, they will not work with SAS drives. – Malvineous Nov 03 '19 at 04:18
  • Any way just switch to SSD ;) but my power supply for my laptop was burned + power cable. So never try again. – user956584 Nov 03 '19 at 07:47
  • I'm already using SSDs but that doesn't help me plug in a SAS tape drive via USB for backups onto LTO tape :-P – Malvineous Nov 03 '19 at 13:27
  • When i press "OTB" button (stupid idea) my power corridor/charger get burned. Buy some old server and import array or replace everything with SSD on RAID 0 at last easy to recovery and SAS data recovery cost really lot of money – user956584 Dec 17 '19 at 13:19
-1

Startech make a $30 drive bay to turn anything into SATA, ie load SAS drive in the front and takes standard SATA out the back. That will speak fluent PC. Then you can do SATA to USB 3.0. Crazy I know, but very doable despite what other people have said. No judgement on whether you really want to be doing this and for what cost.

Andrew Morton
  • 2,957
  • 2
  • 20
  • 29
DrewII
  • 1
  • 2
    Do you have a link for this? I've looked through their products but I can't find anything that converts SAS into SATA for $30. – Malvineous Nov 03 '19 at 04:23
-2

You can use pretty much any HDD enclosure, which you can find on sites such as Newegg or Amazon. The keyword to search for is "External Hard drive enclosure".

Just make sure to choose SAS interface rather than SATA.

Here is a sample: https://www.newegg.com/Product/ProductList.aspx?Submit=ENE&IsNodeId=1&N=100008040%20600006291

Godryc
  • 99
  • 4
