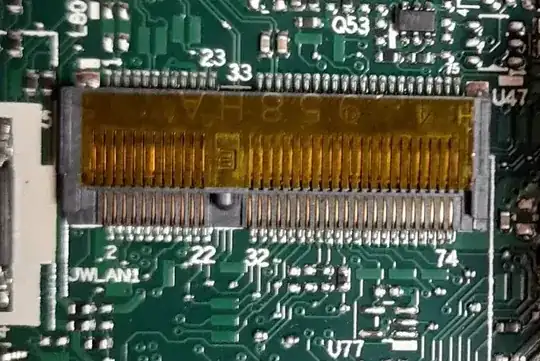

What kind of a slot is this, please?

It's in Lenovo Thinkcentre M920q. I did check the manual and it seems that the optional Wi-Fi card goes here (which I do not have), but it does not say what slot this is. And I couldn't find the correct keywords to google for the answer based off the pin count.

enter image description here

Violet Giraffe
  • 1,187
  • 6
  • 21
  • 36
  • Lenovo says its a M.2 slot only for wifi, scroll down for Tech Specs>>>>>https://www.lenovo.com/us/en/desktops-and-all-in-ones/thinkcentre/m-series-tiny/ThinkCentre-M920q/p/11TC1MTM92Q – Moab Jul 12 '20 at 21:16
  • @Moab: so it is electrically M.2, but physically it's nothing standard? Do you think it's impossible to connect other PCI-E devices to this slot, even if I had the right passive adapter? – Violet Giraffe Jul 12 '20 at 21:17
  • 1
    Its special for wifi cards only, M2E slot, NGFF M2 standard. There is a M2A slot also, it has the key slot in a different place.>>>>https://www.amazon.com/Wireless-PCs-NGFF-Card-2-4GHz-Bluetooth-Wireless-AC/dp/B07FMKHKQY – Moab Jul 12 '20 at 21:23
  • Hell there lots of configurations, scroll down for the chart>>>>>>>>https://www.atpinc.com/blog/what-is-m.2-M-B-BM-key-socket-3 – Moab Jul 12 '20 at 21:31
  • https://en.wikipedia.org/wiki/M.2 – Moab Jul 12 '20 at 21:34
  • 1
    M.2 Key E: https://www.delock.de/infothek/M.2/M.2_e.html – wb3 Jul 12 '20 at 22:31
  • Thank you, @Moab. You should post this as an answer. – Violet Giraffe Jul 13 '20 at 07:32
  • And thank you @wb3, you should also post an answer. – Violet Giraffe Jul 13 '20 at 07:33
  • Great, I will!! – wb3 Jul 14 '20 at 15:04

1 Answers1

2

M.2 Key E. This is a more complete explanation of M.2 slots: delock.de/infothek/M.2/M.2_e.html

enter image description here

LawrenceC
  • 73,030
  • 15
  • 129
  • 214
wb3
  • 538
  • 2
  • 8
