I've problems with x64-virtualisation in VMware Workstation. I don't know what's the problem:

Hardware: AMD Phenom II 1090T (does support AMD-v), ASUS M4A88T-M Mainboard and 8GB of RAM. That should be enough to do some little virtualisation.

Software: Windows 7 Enterprise x64, VMware Workstation 7.1, ESX 4.1 as VM in VMware Workstation

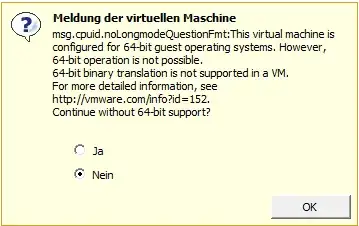

I tried to create a VM on that ESX but got this error:
enter image description here

I looked in my BIOS but found nothing like "enable virtualization". The Mainboard manual doesn't have information about virtualization.

I hope someone can tell me what to do to allow x64-guests on my esx-vm.

wullxz
  • 2,716
  • 4
  • 26
  • 38

1 Answers1

19

According to this ASUS calls the setting "Secure Virtual Machine Mode" in the BIOS. According to your manual, it should be listed under Advanced / CPU Configuration. There is a German manual on the ASUS site if your BIOS uses that. The German manual calls it "Secure Virtual Machine Modus" or "SVM".

Bacon Bits
  • 6,595
  • 1
  • 22
  • 22
  • Thanks for your answer. This option is already enabled in my bios... – wullxz Apr 19 '11 at 19:35
  • Don't know then. Perhaps VMware hasn't added support for your processor? I know the 1090T is brand new. Does Virtual PC or VirtualBox allow you to enable hardware virtualization? Does the [MS tool](http://www.microsoft.com/downloads/en/details.aspx?FamilyID=0ee2a17f-8538-4619-8d1c-05d27e11adb2) show you have the capability? – Bacon Bits Apr 19 '11 at 19:55
  • Microsofts Tool says that my computer is configured with hardware-assisted virtualization. That means, VMware Workstation is eventually missconfigured... – wullxz Apr 19 '11 at 21:09
  • 1
    I found the reason why this is not working: http://communities.vmware.com/message/1455752 - VMware has to develop VT-x/AMD-v path through first to get x64 nested VMs working. Thanks for your help Bacon. – wullxz Apr 19 '11 at 21:27
  • Yup, thanks, this appeared at the top of a Google search and resolved our confusion about why there was _ostensibly_ no reference to AMD-V in the firmware menu. – underscore_d Apr 06 '16 at 10:58
