How can I detect the amount of memory slots I have?

Question

I know that there used to be a Corsair memory detection tool, but I can no longer find it. I didn't find anything when searching Google.

I would like to scan my machine to know a few things:

How many memory slots I have on my motherboard.
The stats per memory stick I have installed in my machine (i.e. speed and size of each stick)
The maximum allowable size and speed per slot (i.e. my motherboard can manage 4GB per slot, at DDR27600 - if that is even a speed, been a while since I upgraded :|)

I am using Windows XP and 7. Any suggestions?

Crucial has a scanner...http://www.crucial.com/systemscanner/index.aspx — Moab, Sep 02 '11 at 22:30

score 83 · Answer 1 · answered May 13 '14 at 13:53

83

How about going by command-line without any third party installer?

wmic MEMORYCHIP get banklabel, capacity, caption, devicelocator, partnumber

gives you something like this

BankLabel  Capacity    Caption          DeviceLocator   PartNumber
BANK 2     4294967296  Physical Memory  ChannelB-DIMM0  xxxxxxxxxx-PB

answered May 13 '14 at 13:53

sarat

1,506
3
17
21

1

Awesome, didn't know this was possible! – M.Mimpen Apr 10 '15 at 08:27
3

:) WMI is a safe and powerful window to Windows. – sarat Apr 10 '15 at 12:38
4

Cool! Can this tool list also the memory slots that are _not_ used? – Jindra Helcl Apr 15 '15 at 08:33
2

For more memory info type first just `wmic` -> that will open wmic console, and afterwards type `memorychip` which will print all memory info in one big scrollable line. – icl7126 May 13 '15 at 09:34
13

This does not report empty slots :-( – SamB Dec 05 '15 at 22:37
@SamB `wmic MEMORYCHIP get memorydevices` will show total memory slots available – Steve Zhan Feb 27 '17 at 03:54
@SteveZhan: Unfortunately, `wmic MEMORYCHIP get memorydevices` just gives an `Invalid query` error here :-( – SamB Apr 26 '17 at 17:02
11

@SamB try `wmic MEMPHYSICAL get MemoryDevices` – Steve Zhan Apr 27 '17 at 03:27
@icl7126 when i run this `wmic MEMPHYSICAL get MemoryDevices` i get `MemoryDevices 2 ` does this mean i have 2 slots? – jasinth premkumar Jan 09 '18 at 15:34
@jasinthpremkumar I'm not sure, but based on the comments above I would say it means you have 2 memory slots in use, but you can have other two empty. Most of the notebooks has 2 memory slots. – icl7126 Jan 09 '18 at 16:49
no my laptop contains only one ram ,also task manager & cpu-z shows that i have 2 memory slots . take a look at my :https://superuser.com/questions/1272057/ram-upgrading-tips i can't find second slot like in the image – jasinth premkumar Jan 10 '18 at 13:03

score 31 · Answer 2 · edited Dec 09 '21 at 13:44

31

To answer question (1) using WMIC:

wmic memphysical get MaxCapacity,MemoryDevices

produces something like this:

MaxCapacity  MemoryDevices
16777216     2

edited Dec 09 '21 at 13:44

mivk

3,441
36
33

answered Nov 05 '15 at 22:31

AndyH

411
4
2

2

This should be the right answer ... Thank you! – hdvianna Apr 16 '16 at 17:00
1

What units is the MaxCapacity in? Is that 16GB? – christo8989 Jun 07 '17 at 22:00
It's kilobytes. I answered here: https://superuser.com/a/1217045/241250 – christo8989 Jun 07 '17 at 22:32

score 28 · Answer 3 · edited Sep 03 '11 at 04:44

28

CPU-Z offers detailed information about RAM slots, timings, XMP profiles, etc. As for max supported you normally will have to look up the limits imposed by your northbridge.

enter image description here

edited Sep 03 '11 at 04:44

Gaff

18,569
15
57
68

answered Sep 02 '11 at 22:43

Lamar B

1,315
8
10

1

CPU-z really is the best out there, and it will suite your needs wonderfully. – wizlog Sep 02 '11 at 22:52
2

How can I tell how many slots there are, and how many are in use? – Martijn Mar 04 '13 at 10:12
7

The SPD tab shows individual slot details. – Lunatik Aug 14 '13 at 10:17
Readings of memory clock (DRam Freq) in CPUZ is half or less than half for DDR2 or higher. – Nikhil_CV Sep 17 '15 at 13:27
I like CPU-Z however, DO NOT RUN THIS ON A PRODUCTION SERVER. I just learned this the hard way. My server stopped responding and required a reboot. Management was not pleased. – Prescient Dec 06 '17 at 21:34
+1 because is the only application that is for free (optional donation) – loved.by.Jesus Feb 18 '22 at 13:33

score 22 · Accepted Answer · answered Sep 02 '11 at 22:34

22

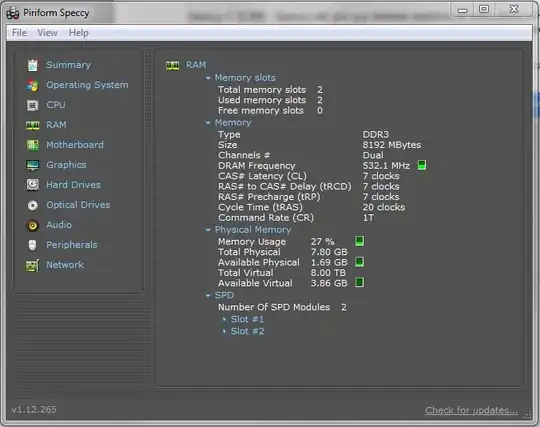

Try Speccy Free Edition

.

enter image description here

answered Sep 02 '11 at 22:34

Moab

58,044
21
113
176

2

+1 Actually shows information about available RAM slots unlike some options below. – User1 Feb 05 '13 at 23:59

score 11 · Answer 5 · answered Oct 23 '16 at 18:54

11

For anyone using Windows 10, you can just open Task Manager -> Performance Tab -> Click Memory and it will tell you slots used out of total available.

answered Oct 23 '16 at 18:54

Andrew Nguyen

511
5
4

score 9 · Answer 6 · edited Sep 14 '15 at 05:51

9

What about PowerShell, Let's check this out:

Get-WmiObject -Class Win32_PhysicalMemory | fl BankLabel, Capacity, `
  DeviceLocator, PartNumber, SerialNumber, PositionInRow, Speed, Tag

edited Sep 14 '15 at 05:51

Community

1

answered Jul 12 '14 at 09:19

marcino

91
1
1

score 3 · Answer 7 · edited May 09 '18 at 09:53

3

To find total RAM slots are in a server use the below in a command prompt:

wmic memphysical get MaxCapacity, MemoryDevices

To find how much RAM is present in the server use the following:

wmic MEMORYCHIP get banklabel, capacity, caption, devicelocator, partnumber

edited May 09 '18 at 09:53

bertieb

7,344
36
42
54

answered May 09 '18 at 09:44

Gabriel

31
1

score 2 · Answer 8 · answered Jun 02 '20 at 07:14

The easiest solution for Windows users is to open the Windows Task Manager.

Press the Windows key, type Task Manager, and then press Enter.
In the window that appears, click the Performance tab, then select Memory.
In the lower-right corner, the number of slots is displayed in the Slots used: section.

You can also use some apps or examine the motherboard. This post will show you these two methods: https://www.computerhope.com/issues/ch001405.htm

score 2 · Answer 9 · edited Aug 07 '15 at 12:59

None of the solutions above truly present an accurate description of physical memory configurations including empty slots, particularly with servers running Windows due to the lack of SPD info (which most of the reporting programs freely available rely on). The ONLY solution I have found that does not cost s-tons is Belarc Advisor. It doesn't have a nice real-time interface like Speccy but the text report is mucho helpful. Just look at this, does not get any more clear:

Memory Modules
Slot 'DIMM_A1 ' has 16384 MB (serial number 0D561***)
Slot 'DIMM_A2 ' is Empty
Slot 'DIMM_A3 ' is Empty
Slot 'DIMM_A4 ' is Empty
Slot 'DIMM_A5 ' is Empty
Slot 'DIMM_A6 ' is Empty
Slot 'DIMM_B1 ' has 16384 MB (serial number 0D561***)
Slot 'DIMM_B2 ' is Empty
Slot 'DIMM_B3 ' is Empty
Slot 'DIMM_B4 ' is Empty
Slot 'DIMM_B5 ' is Empty
Slot 'DIMM_B6 ' is Empty

I know this is an old post but I needed to see what memory was installed on my server and what slots were open. I don't have physical access, only RD. I like and use Speccy a lot but it was not able to tell me the slots used vs open on this particular server. Belarc Adv did that for me. Between BA and SIW below (which also was helpful for the details on the exact memory currently installed) I have a handle on what I need. — Jeff Mergler, May 22 '18 at 18:48

score 2 · Answer 10 · answered Sep 17 '15 at 12:44

I've used System Information for Windows (SIW) for years and found it a fantastic toolkit. Not only does it show number of memory slots, it shows what's in them, the maximum capacity, the manufacturer, part number, voltage etc etc

That's just the tip of the iceberg - you can find out software licence keys (Windows, Office and others), certain passwords, CPU information, laptop battery wear, hard drive temperatures, the list is endless! (I've used it for years and must have used a fraction of it's features.)

Not only that - there's no install, it's just a 2MB executable so ideal for putting on a USB drive for PC diagnostics.

Unfortunately, the free home version has been discontinued, and even if you can find it it doesn't work on Windows 10. I guess Gabriel Topala finally wanted more than the "Buy me a coffee" option, but to be fair he's certainly earned it!

I know this is an old post but I needed to see what memory was installed on my server and what slots were open. I don't have physical access, only RD. SIW (trial) was helpful for the details on the exact memory currently installed including model, Serial, Capacity, speed, etc (all crucial details when ordering more ram). It didn't indicate empty slots however (maybe due to trial status). For that information Belarc Advisor above was good: it indicated 2 slots of n were being used. Now I know that I can get n-2 more ram for this machine. — Jeff Mergler, May 22 '18 at 18:48

score 0 · Answer 11 · edited Aug 30 '19 at 16:49

0

On windows you can just :

Open the task manager (Shortcut Ctrl + Alt + Escape Key)
Click on the Performance Tab
Select The Memory Option
Information of the memory will be available (including information about available slots, used and unused).

edited Aug 30 '19 at 16:49

tinlyx

1,460
6
26
42

answered Aug 30 '19 at 11:17

Kali

1

I'm guessing that wasn't available on Windows XP or 7. – HazardousGlitch Aug 30 '19 at 22:08
oh kk cool but the terminal could still be of help – Kali Sep 03 '19 at 23:04
I guess, you meant Ctrl + SHIFT + Escape key combination. – bafsar Jan 23 '20 at 10:37

score 0 · Answer 12 · answered May 07 '20 at 02:22

0

The easiest solution for Windows users is to open the Windows Task Manager.

Press the Windows key, type Task Manager, and then press Enter. In the window that appears, click the Performance tab (A), then select Memory (B). In the lower-right corner, the number of slots is displayed in the Slots used: section (C).

answered May 07 '20 at 02:22

laurayuan

145
4

(1) This seems to duplicate a couple of previous answers. (2) What's this about "A", "B" and "C"? Did you mean to include a picture? (3) Please specify what version of Windows you are talking about. This does not work on all versions. … … … … … … … … … … … … … … … … … … Please do not respond in comments; [edit] your answer to make it clearer and more complete. – G-Man Says 'Reinstate Monica' May 07 '20 at 04:24
