I have bought cable internet from teksavvy and the modem arrived however the cable that comes out of the wall and goes into the modem where it's labelled "Cable", is very short.

What's the name of this cable? But most importantly can I buy one that can extend this cable so I can bring the modem closer to my PC?

If so, please advise where and which cable I should be looking for? Would canadian tire carry this item for instance?


iglvzx
  • 23,459
  • 13
  • 85
  • 122
Joan Venge
  • 1,444
  • 9
  • 25
  • 38
  • Pictures? Pin count? Anything? – Ignacio Vazquez-Abrams May 23 '12 at 00:19
  • I couldnt find a picture of it because typing modem cable only seem to show ethernet cables. This doesnt have pins but you secure the cable onto the modem by rotating the end attachment, so it has the ridges(?), not pins. – Joan Venge May 23 '12 at 00:26
  • Make and Model of modem?? – Dave M May 23 '12 at 00:28

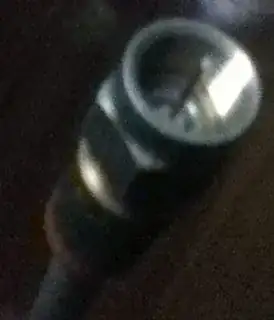

  • It says it's thompson. Also took a picture with ipod but bad lighting because the cable is in an awkward position: http://i.imgur.com/aB9OT.jpg – Joan Venge May 23 '12 at 00:36
  • Modem is thomson dcm475. – Joan Venge May 23 '12 at 00:39
  • Btw I am posting this from ipod, that's slow to make changes to the question. – Joan Venge May 23 '12 at 00:41
  • 1
    Get some better lighting on it so we can see in the end of it. You say there's no center pin/wire, a blip of light seems to make it have one. – Fiasco Labs May 23 '12 at 00:58
  • As Fiasco said, please retake the picture with better lighting. I tried to enhance it a bit, but there's only so much you can do... – iglvzx May 23 '12 at 01:00
  • lol guys I only have ipod to take pics and there is no light in that room and the cable barely reaches the window and it's already dark outside. – Joan Venge May 23 '12 at 01:03
  • New pic lighted with cell phone, actually it was the male version my bad: http://i.imgur.com/VSPGd.jpg – Joan Venge May 23 '12 at 01:09
  • Yep, that was what I was expecting to see. Any place that services cable tv will have these pre-made up (cable tv patch cable). In the states Radio Shack tends to be the place to go, though Walmarts carry them. Your cable guy just pulled some coax off a reel and crimped the ends on. – Fiasco Labs May 23 '12 at 01:31

4 Answers4

15

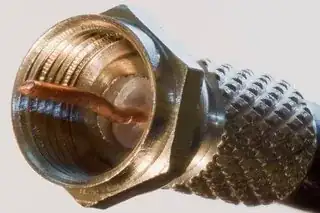

I would guess that it is most likely an F Connector: http://en.wikipedia.org/wiki/F_connector enter image description here

Yes Canadian Tire would most likely carry an F Connector. If not you can easily purchase these connectors (or already crimped cables) online (just search google for it).

Paul
  • 59,223
  • 18
  • 147
  • 168
jds
  • 662
  • 4
  • 13
  • Thanks mine is that except it doesnt have that bronze colored pin in the middle. Does it matter? – Joan Venge May 23 '12 at 00:49
  • You may be describing the female version of this. Most cable connectors are described as male or female for fairly obvious reasons. Is this more what you are talking about? http://www.alibaba.com/product-gs/241830874/BNC_Connector_Female_to_F_Connector/showimage.html – jds May 23 '12 at 00:53
  • Thanks gotcha I will get the female version then. The input also is solid and has no hole, anyway. Other than this there would be no other f connector right? i.e. bigger radius connection, etc? Lastly would extending this have any impact on the speed of the connection? – Joan Venge May 23 '12 at 00:56
  • There is no other version of this connector in widespread use, no. Extending the cable should have no noticeable effect on the speed of the connection. (As long as you use an appropriate shielded cable). See the discussion here: http://www.dslreports.com/faq/5420 – jds May 23 '12 at 01:00
12

You have cable internet and this is either 75 Ohm rg-59 or rg-6 quad shield coaxial with a compression F-connector.

You install them with this after using a proper stripper They look like this

iglvzx
  • 23,459
  • 13
  • 85
  • 122
Fiasco Labs
  • 6,756
  • 1
  • 26
  • 33
  • Why not 75 Ohm RG-59 or RG-6, as used by cableTV companies that also provide ISP? Not likely that she has thin Ethernet. – sawdust May 23 '12 at 00:55
  • @sawdust. Yep, the other left hand. I work with avionics so 50 Ohm cable comes to mind first. You are absolutely correct. 75 Ohm and rg-59 or rg-6. At least I had the quad shield right... – Fiasco Labs May 23 '12 at 01:01
  • Specs for that Modem: WAN throughput: 340 Mbps WAN throughput upstream: 131 Mbps WAN ports: 1 WAN port(s) type: Coax F-connector LAN ports: 1 LAN ports type: 10/100/1000 Gigabit Ethernet (RJ-45) – Fiasco Labs May 23 '12 at 01:05
  • 3
    I vote that the center wire has broken off or has pulled back into the connector if you don't see one. – Fiasco Labs May 23 '12 at 01:12
6

Cable modems are commonly connected on the server side with a 75 Ohm RG-6 coaxial cable , terminated with a "F" connecter. The "bronze" thing is the actual copper center wire (18 gauge) of the coax cable.

The longer cable you want can most easily be found in the TV antenna section of a store. Lengths of 3', 6', 25' and much longer RG-6 coax cable should be available. You would be better off using just one long cable. Do not extend the old by getting a joiner & new cable, or an extension cable with a female end (instead of both ends male).

sawdust
  • 17,383
  • 2
  • 36
  • 47
  • Yes, I agree. Keep the runs intact with no extra connections. This is a DOCSIS 3.0 modem that would appreciate as clean a signal as it can get. – Fiasco Labs May 23 '12 at 01:22
  • Thanks guys but how can I use a longer one? The end of the cable is buried inside the wall. Any ideas? – Joan Venge May 23 '12 at 01:36
  • 1
    Oops, I assumed there was a wall plate that had an exposed female "F" connector. Then you will need to use a joiner or coupler (both ends are female "F" connectors, http://www.mcmelectronics.com/product/27-5661) and the new cable. This ends up being the same number of connections as having a wall plate. Look for this stuff at an electronics, hardware or TV store, not at a computer store. – sawdust May 23 '12 at 01:52
1

This looks like an F connector:

enter image description here
